TrakMate Drag Pro 3000

Table of Contents

Features
Screen Shots
1/24 Scale pictures

Drag Racing Video on short track for 1/32 or 1/24 scale   <--- This track for sale!

Drag Video 1 Drag Video 2 Drag Video 3
Drag Video 4 Drag Video 5 Drag Video 6




TrakMate LED Tree

Download Documentation for the Drag Pro 3000 in PDF format

Download Version 1  can be used in Demo or with the hardware.

Hardware Features

  • .0001 accuracy
  • supports up to 3 intermediate times (60', 330', 660')
  • True Prestage and Stage sensors
  • Speed Trap of any length
  • compatible with all slotcar scales, R/C cars, etc
  • Supports tree lights and win lights
  • can be connected to many types of sensors

Software features

  • User friendly windows software
  • Enter names only once
  • Supports Pro Tree and Full Tree with bracket racing
  • Swap lanes at a click of a button
  • View logged races
  • Export data to excel
  • Print data
  • Print race slips
  • Sort data on any field
  • Display top qualifiers for all classes with a single click of a button
  • Visual indicator of Red Lights, break outs and winner.
  • User can set a Speed multiplier for realistic speeds
  • Display in MPH or metric KPH
  • Automatically determines winner if one breaks out or red lights
  • Perfect reaction time is 0.0000 (new for 2003)

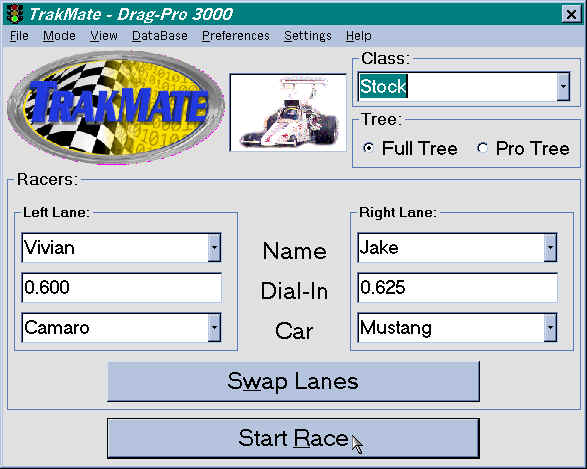

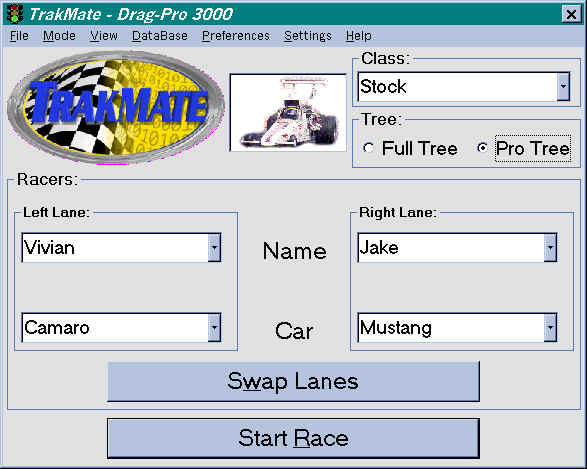

See screen shots below, click on any image to enlarge




Reaction time shown in Red if red lighted

ETs shown in Yellow if a Break Out occured dp300013.gif (25916 bytes)

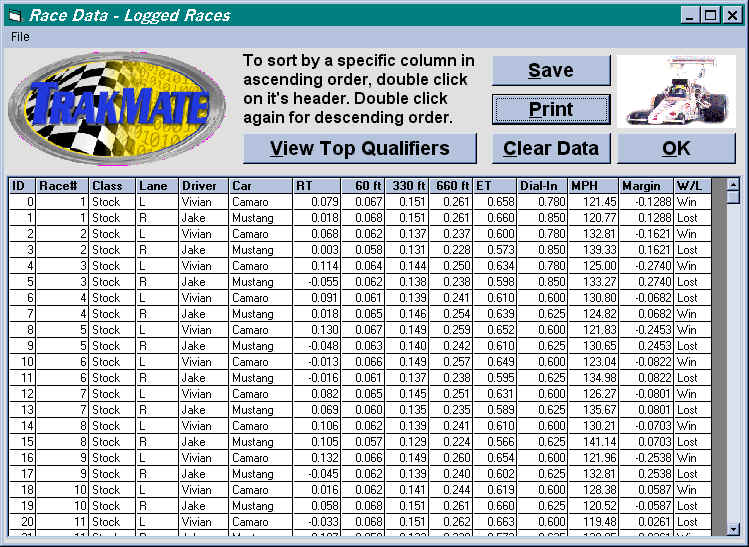

dp300012.jpg (114016 bytes) View all races.  Sort on ETs RTs MPH etc

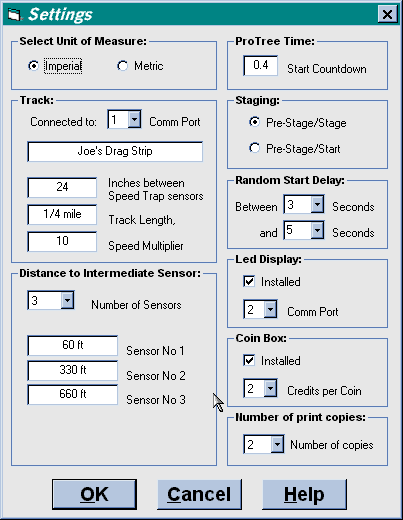

Installation Settings wpe2.gif (13476 bytes)

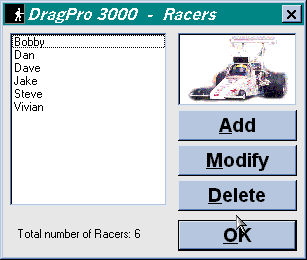

Add racers names to database,  No need to re-type names dp300016.gif (8057 bytes)

see catalog for pricing
